Introducing Innovative Gear Case Studies We Have Developed
We introduce a selection of gear development cases that fully leverage the advantages of super engineering plastics, including metal composite forming and metal substitution applications.
Development Case Study: Multi-Material Composite Formed Gears [Metal + Super Engineering Plastic]
Patent Obtained Registration Number 7624671
Proprietary Molding Know-How Realizing Multi-Material Composites with Material Suited to Purpose

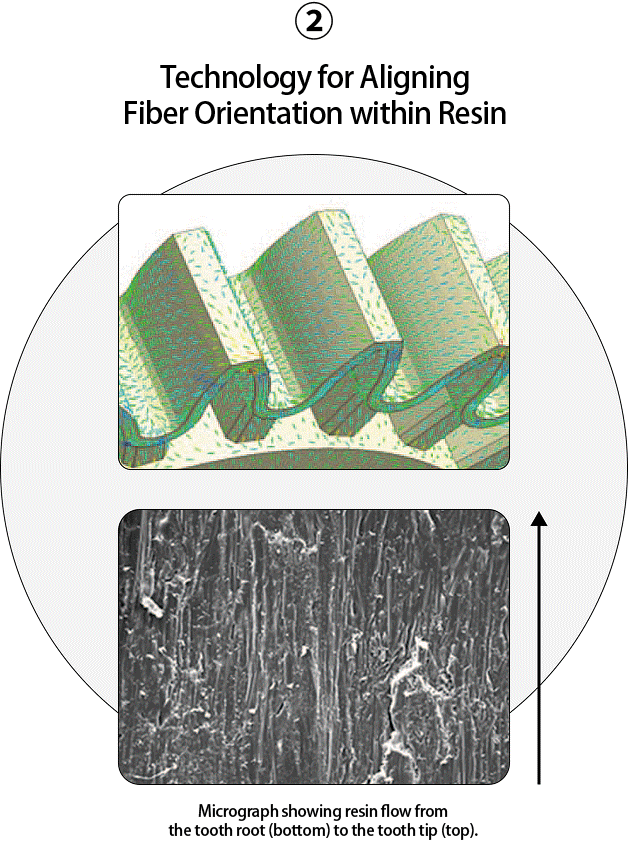

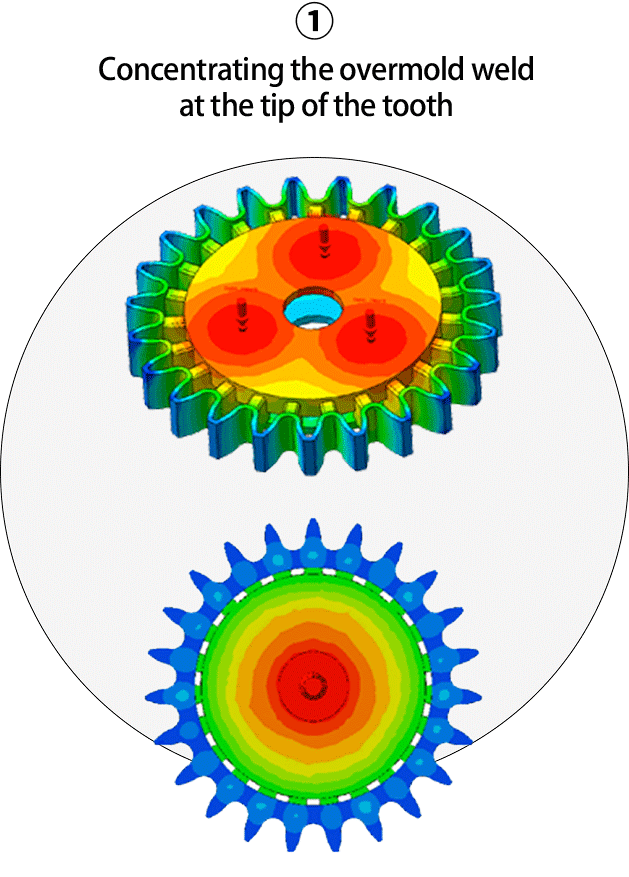

We have successfully addressed the challenges of conventional metal gears such as noise, weight, and lubricant requirements by overmolding fiber-reinforced resin onto the surface of metal gears using our proprietary know-how, significantly improving overall gear performance. A key to this realization was concentrating the weld lines of the overmold at the gear tooth tips to enhance the strength of the tooth profile. Additionally, by orienting the fibers within the resin coating on the tooth profile from the tooth root toward the tooth tip, we have enhanced sliding characteristics.

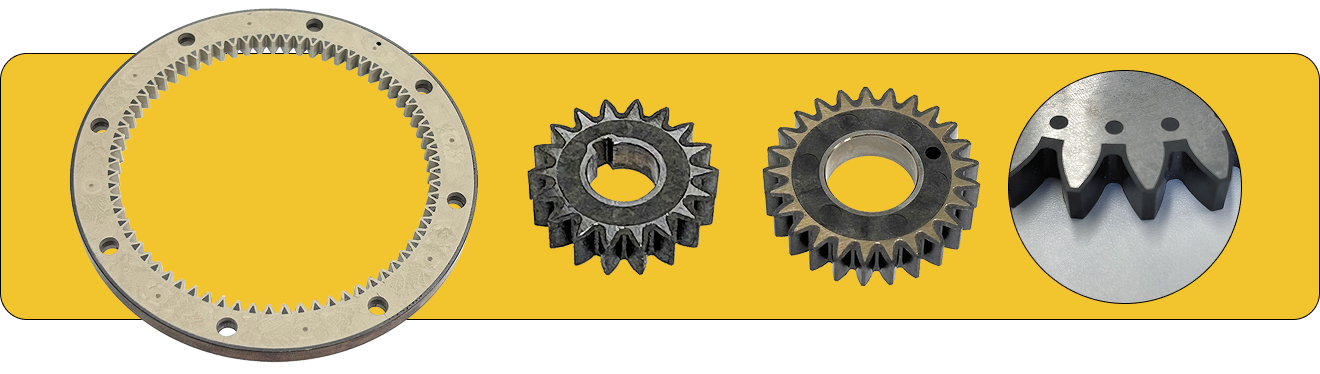

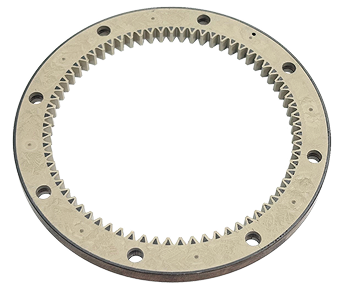

Ring Gear, Sun Gear, Planetary Gear, Tooth Tip
Molding Technology Achieving Enhanced Durability
Products Utilizing Multi-Material Composite Formed Gears

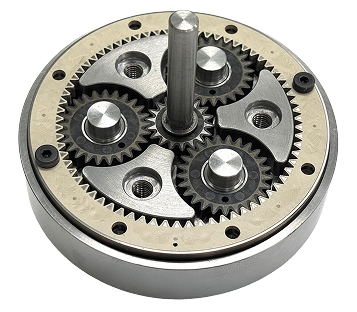

We have newly developed a "specialized gear-type reduction gear" with unprecedented high performance, incorporating composite gears precisely molded with metal cores and tooth surfaces in super engineering plastic.
- Newly Developed: Specialized Gear Reduction Gear
- Metal + Super Engineering Plastic Molding
- Hybrid Gear Design Included
